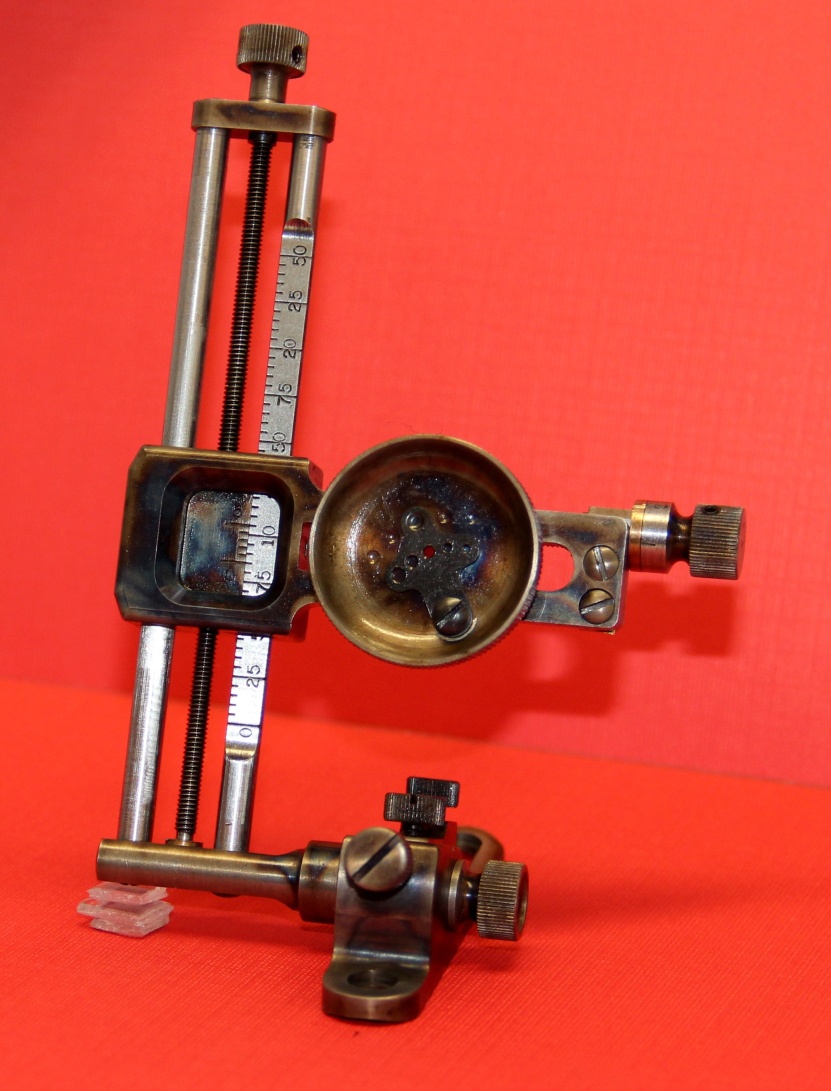

K.O.S. Mid Range Sight


For a more detailed view, click on the image below, a new picture will appear in another browser window. Then click on the picture to get a more detailed look.


(click on image for better view)
  • The base has a tilt screw to allow the staff to be set perfectly at all elevations
  • The base can be mounted with hole spacing from 1.5" to 2.260". Other hole spacing available upon request
  • The design offers 37½ M.O.A. on each side of zero - "bring on the wind"
  • 250 minutes of elevation
  • Windage adjustments are in 1/2 M.O.A.
  • Elevation adjustments are in 1 M.O.A.
  • All parts are color case hardened except the staff legs which are high carbon steel
  • All bearings for elevation and windage are silicon bronze
  • All parts CNC machined to precise tolerances
